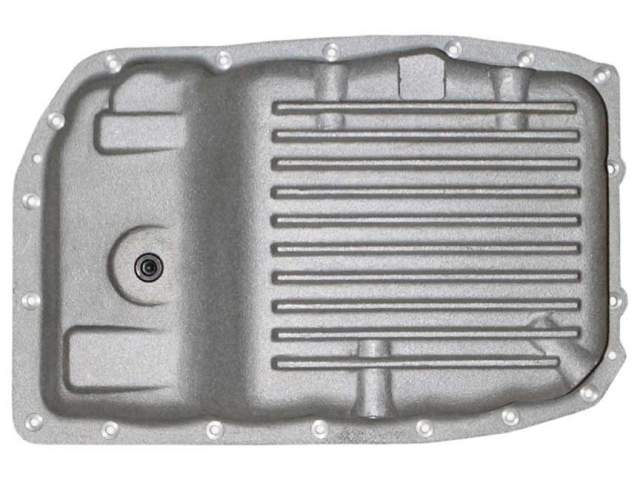

GM 6L80, 6L80E Stock CapacityM
Part Number M45765C-SC-N
Pan includes magnetic drain plug, fill plug, and mounting hardware.
Volume: stock capacity compared to 3.3" deep stock pan
Dimensions: Click here for dimensions.
This pan is about 5/8" deeper than the 3.3" stock pan.
Number of Bolts: 18 (there are 20 holes, 2 holes locate the gasket and 18 holes for bolts to hold the pan to the transmission case)
Transmission pan is designed for 2006 and newer Cadillac, GMC, and Chevrolet cars and GM trucks and SUVs with the 6L80, 6L80E transmission.
- Features:
- Maintains ground clearance or clearance to skid plate, only 5/8 inch deeper than stock
- Heavy duty sand cast aluminum construction
- Finned to dissipate heat from transmission fluid
- Drain hole and magnetic drain plug for easier maintenance
- Fill/level check hole and plug for filling the transmission through the pan
- Thick walls to add strength to the transmission housing
- Thick gasket flange, machined flat for a leak free seal
- There is a fill/level check hole for vehicles without a dipstick, such as some Camaros. The fill/level check is 5/8 inch below the flange. Check that your stock pan is the same.
If the exhaust crosses underneath the stock pan, you may need to drop or lower the exhaust to install this pan. Three bolts are difficult to access and there is not any space to manuever the thicker PML pan on to the transmission housing.
